Display 3 ½ digits LCD display, Maximum display 1999 T-RMS Digital TRMS AC Clamp Meter

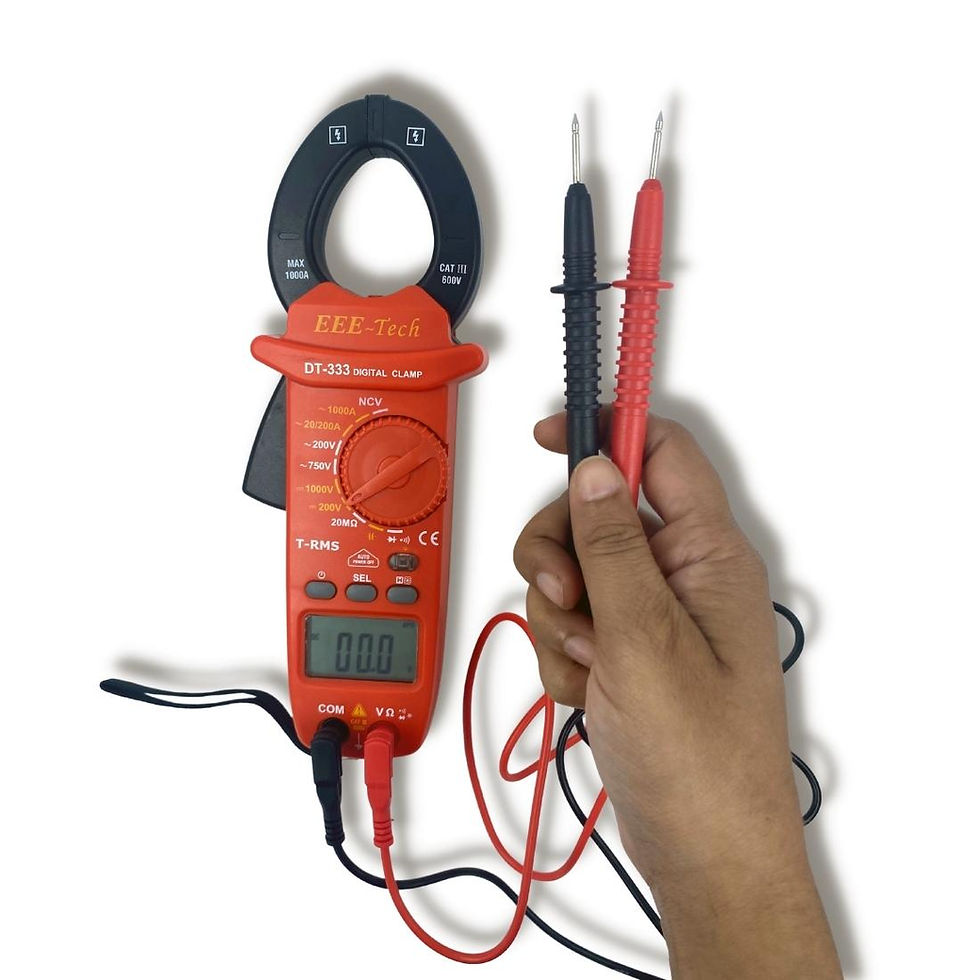

EEE-Tech DT-333 Digital TRMS AC Clamp Meter
Display 3 ½ digits LCD display, Maximum display 1999
T-RMS Measurement
Polarity: Auto Polarity
Overloading Display “OL” or “OL”
Low Battery Indicator
Non-Contact Voltage Detector
Built-in White Flashlight at the Clamp Jaw
Display Size (l x W) : 42mmx26mm, Digit Height 19mm
Measurement Method large Integrated Circuit with High
Performance Dualintegral A/D Converter
Sampling Rate : 2-3 times/second
Two Active Clamp Arms: maximum conductor Size 40mm
AC Current (T-RMS) : 20A/200A/1000A
Accuracy : 2.5%
AC voltage (T-RMS) : 200V/750V
Accuracy: 1%
DC Voltage : 200V/1000V
Accuracy : 0.5%
Resistance: 20MΩ
Accuracy : 0.8%
Temperature : -40°C - 1000°C (DT 333C Only)
Accuracy : 3%
Capacitance: 2000μF (DT 333 Only)
Accuracy : 3%
Audible and Visual indication Continuity Test
Diode Test
Data Hold
High-intensity blue backlight/clamp jaws white light
Auto-off After 10 Seconds when activated
Safety Complies with IEC61010-1 and IEC 61010-2-32
Pollution degree 2
Overvoltage Category: Double insulation
CAT.III 600V/ CAT II 1000V
in Pollution Degree 2
Power: 1.5VAA battery 2 Pieces
Dimensions (L x W x D) : 247mm x 92mm x 46mm
Weight Approx 393g (including battery)
Operating Condition: Temperature 0-40°C,
Relative Humidity ≤80%
Storage Condition: Temperature -10-50°C,
Relative Humidity ≤90%
