Digital Insulation Tester for upto 200GΩ, with 6 test voltage range 100V/250V/500V/1000V/2500V/5000V.

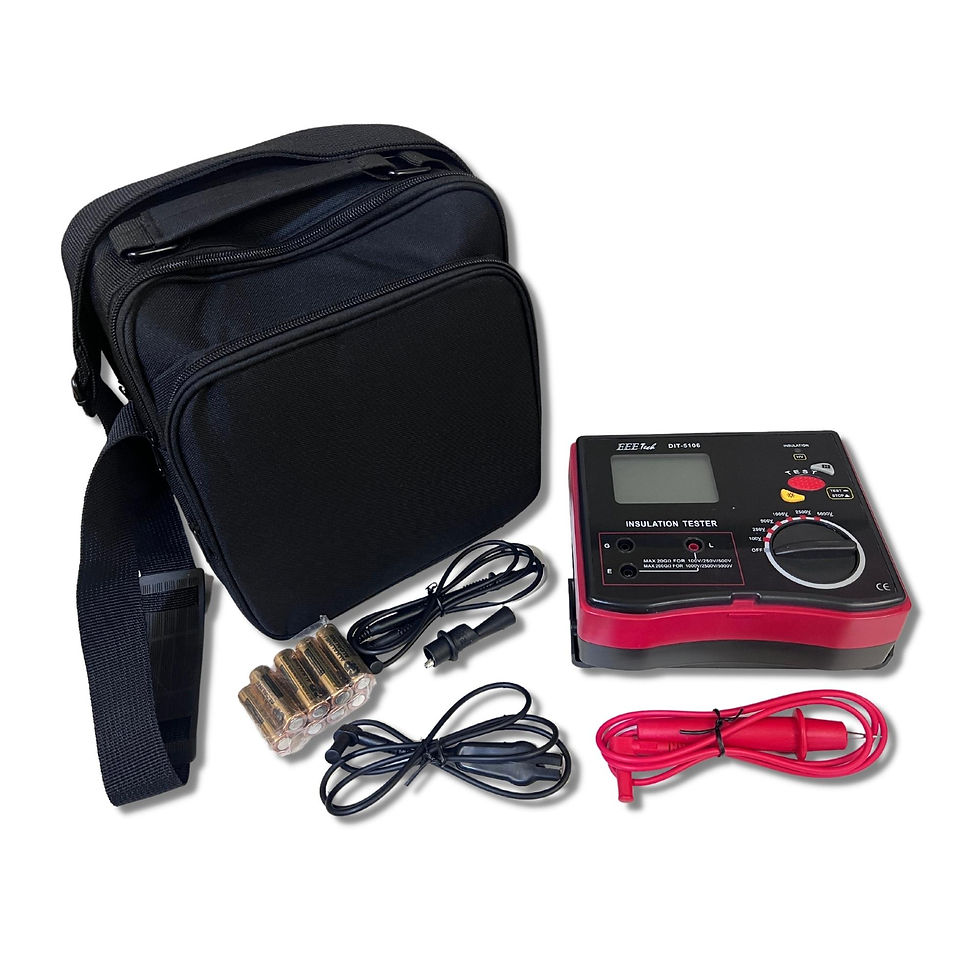

EEE-Tech DIT-5106 Digital Insulation Tester
SKU: DIT-5106
₹11,250.00Price
Taxes Included
• Six Test Voltages that covers 100V | 250V / 500V
| 1000V | 2600V I 5000V
• Measuring insulation Resistance up to 20060Ω
• Data Hold, Auto-ranging, Auto Power-off
• Backlit LCD Display
• Complete with test leads, heavy duty carrying
case, batteries and instruction manual
• Test Voltape: 100V | 250V | 500V / 1000V
2500V | 5000V
• Insulation Resistance:
0.1MΩ - 200MΩ + (3% + 5 digits)
200MΩ - 10GΩ+ (5% + 5 digits)
10GΩ - 200GΩ+ (10% + 5 digits)
•Resolution: 0.01MΩ
• Short Circuit Current : Approx. 2mA
• Auto Range: Yes
• Data Hold: Yes
• Low Battery indication: Yes
• Backlit LCD: Yes
• Max. Display Counts: 1999 Counts
