This EEE-Tech Clamp Meter with a 40mm jaw, is value for your money. With 1000A AC/DC and TRMS AC measurements, it is the ideal tool for your needs for measuring high currents.

It features non-contact voltage detection as well as has a backlit LCD and an in-built flashlight, making it easy to use in dark environments.

It can measure multiple ranges, including AC Current, DC Current, AC Voltage, DC Voltage, Capacitance, Frequency, Resistance and Temperature. Offers data hold function, zero setting and auto power-off.

EEE-Tech DT-360A Digital TRMS AC/DC Clamp Meter

Name: EEE-Tech DT-360A Digital TRMS AC/DC Clamp Meter
Brand: EEE-Tech
SKU: DT-360A
Price: 3375 INR
Availability: InStock

SKU: DT-360A

₹3,375.00

Taxes Included

Quantity

3-5/6 Digits 6000 Counts Backlit LCD Display
Auto-Polarity
Overload Indication
Low Battery Indication
T-RMS measurements of AC Voltage & AC Current
Data Hold Function
Non-contact Voltage Detector
Zero Setting & Relative Measurement
Auto Power-off
40mm Clamp Jaw Dia

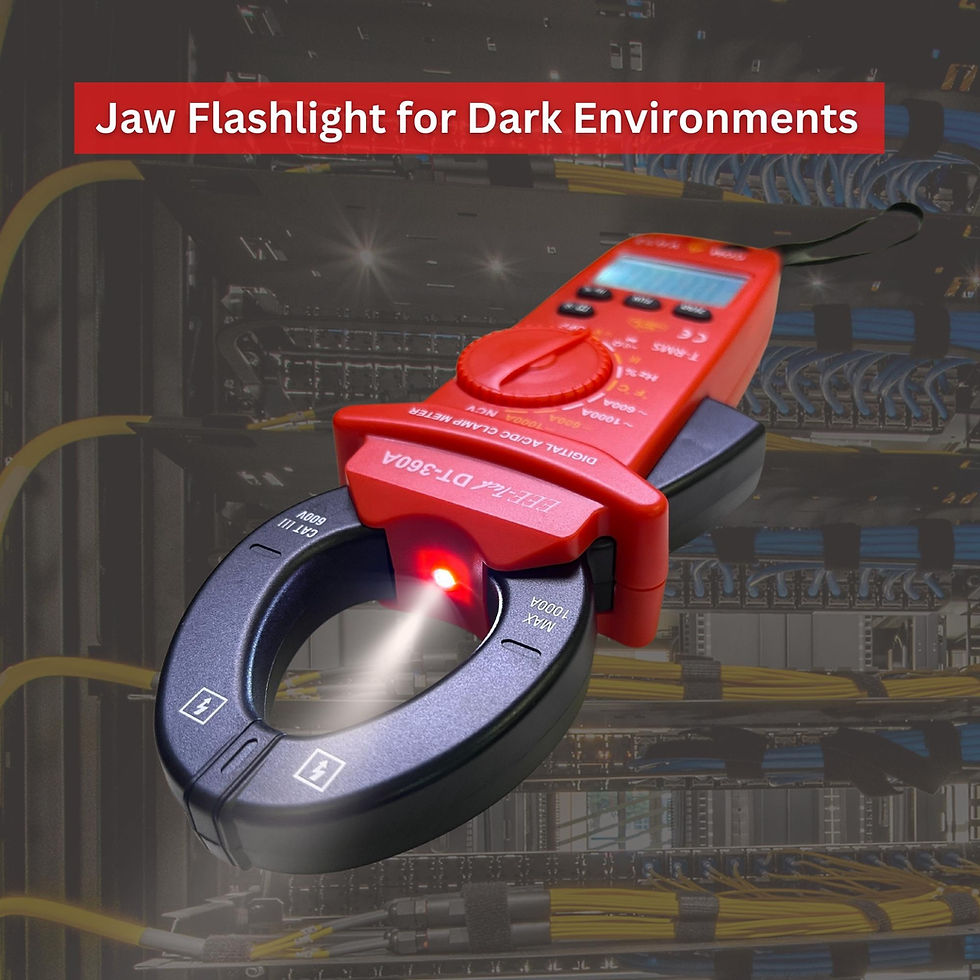

Flashlight in the Clamp Jaw to access dark areas
AC Current (T-RMS): 0 – 600 / 1000A AC
Accuracy: ±2.5%
DC Current: 0 – 600 / 1000A AC
Accuracy: ±2.5%
AC Voltage T-RMS: 0 – 600m / 6 / 60 / 600 / 750V
Accuracy: ±1.0%
DC Voltage: 0 – 600m / 6 / 60 / 600 / 1000V
Accuracy: ±0.5%
Resistance: 0 – 600 / 6k / 60k / 600k / 6M / 60MΩ
Accuracy: ±0.8%
Capacitance: 0 – 60n / 600n / 6u / 60u / 600u / 6000uF
Accuracy: ±3.0%
Frequency: 0 – 100 / 1k / 10k / 100k / 1M / 10MHz
Accuracy: ±0.1%
Temperature: -20° to 1000°C
Accuracy: ±1.0%
Complies to IEC-61010-1 and IEC-61010-2-32, CAT-III, 600V

EEE-Tech DT-360A Digital TRMS AC/DC Clamp Meter

Specifications

Calalogue
